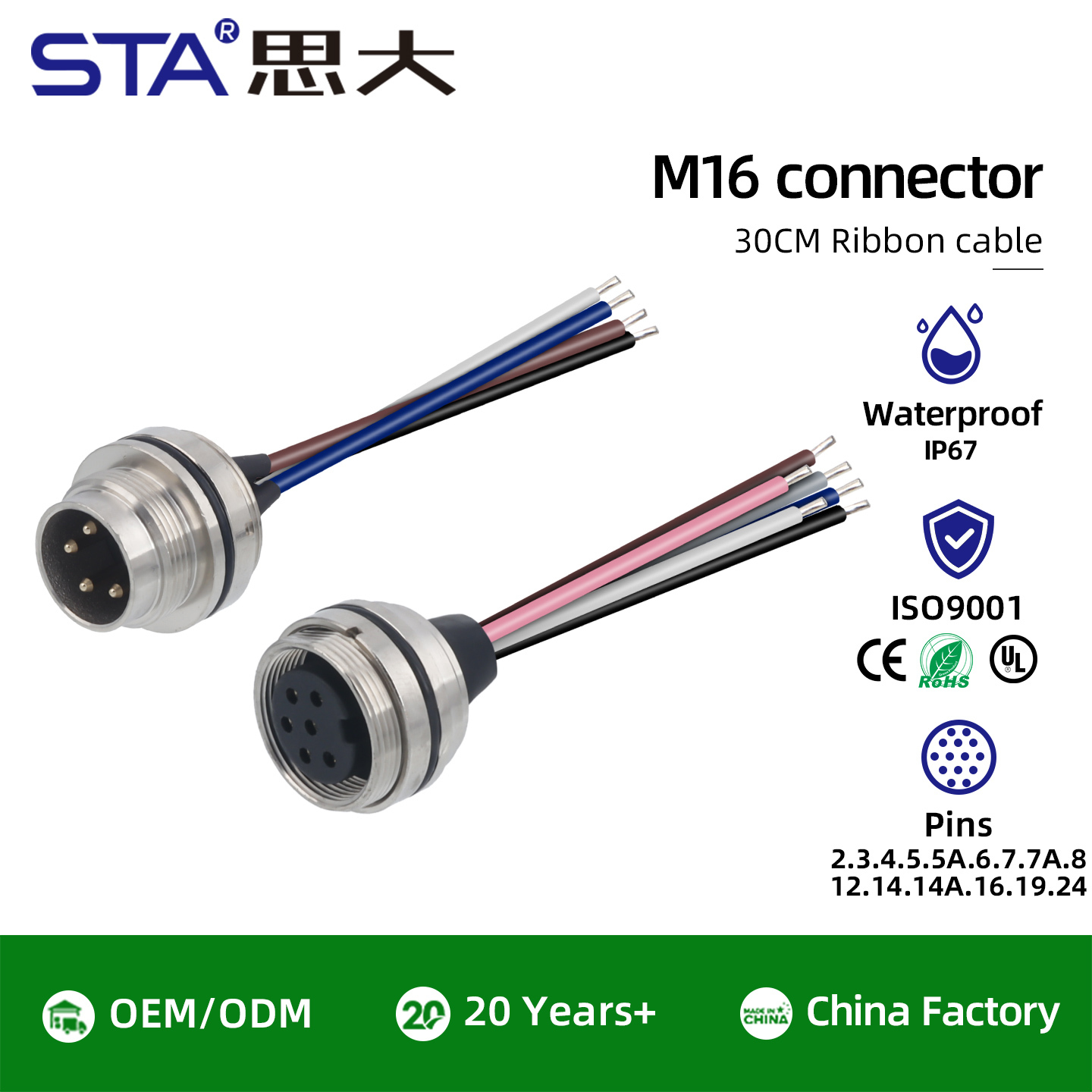

M16 IP67 Waterproof Connector: Panel Mount Socket with 30cm Wire

Name: M16 IP67 Waterproof Connector: Panel Mount Socket with 30cm Wire
Brand: STA Connector
Availability: InStock
Rating: 5 (1 reviews)

The STA M16 Socket Connector provides secure IP67 waterproof performance for industrial signal and power interfaces. Available in 2 3 4 5 6 7 8 12 14 16 19 24 pins and rated up to 14A, it supports front-mount and back-mount panel installation with solder contacts. Designed for automation, sensors, and outdoor equipment requiring reliable and durable panel-mounted connectivity.

Connector Type

M16 Solder Front/Back Mount Socket

Pin Count

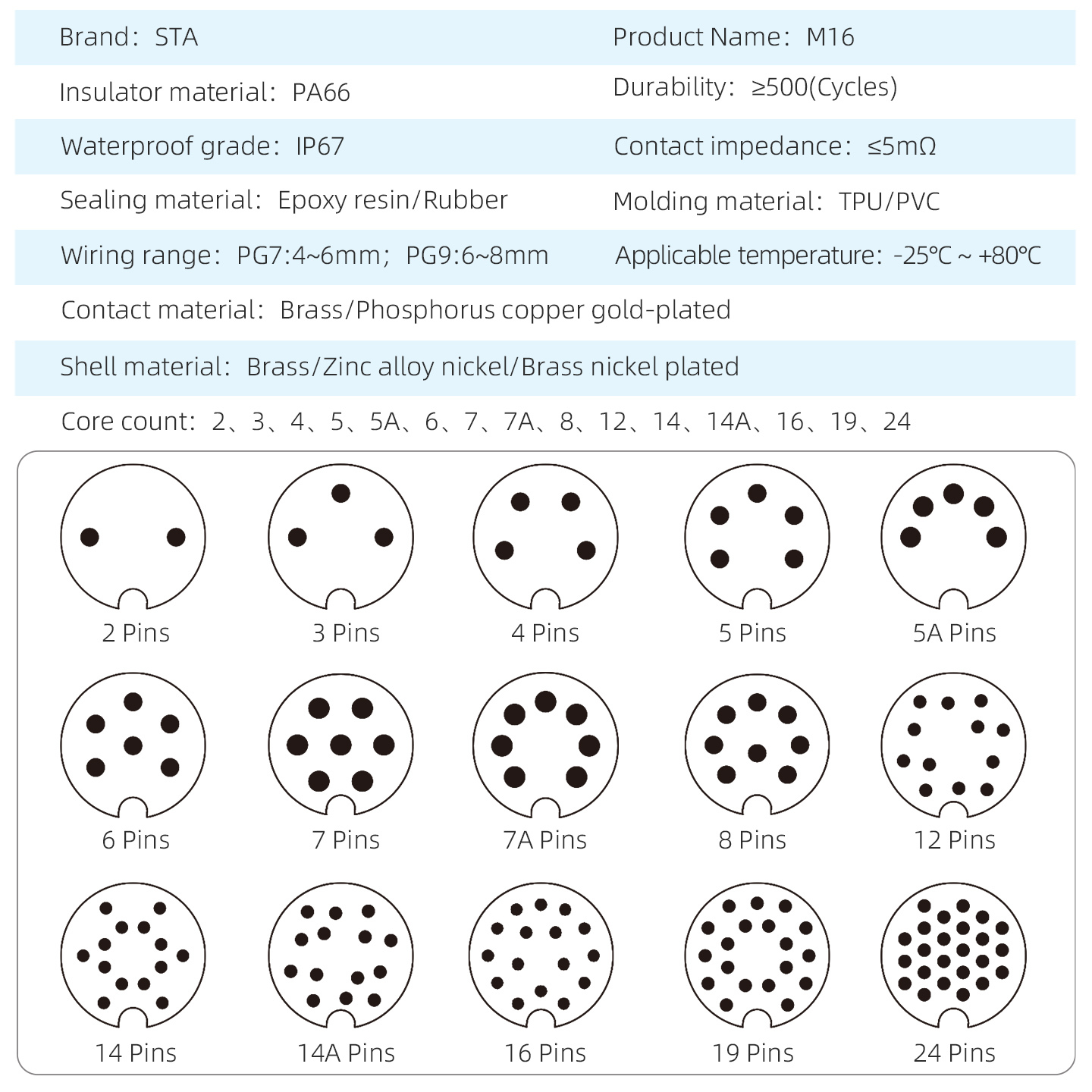

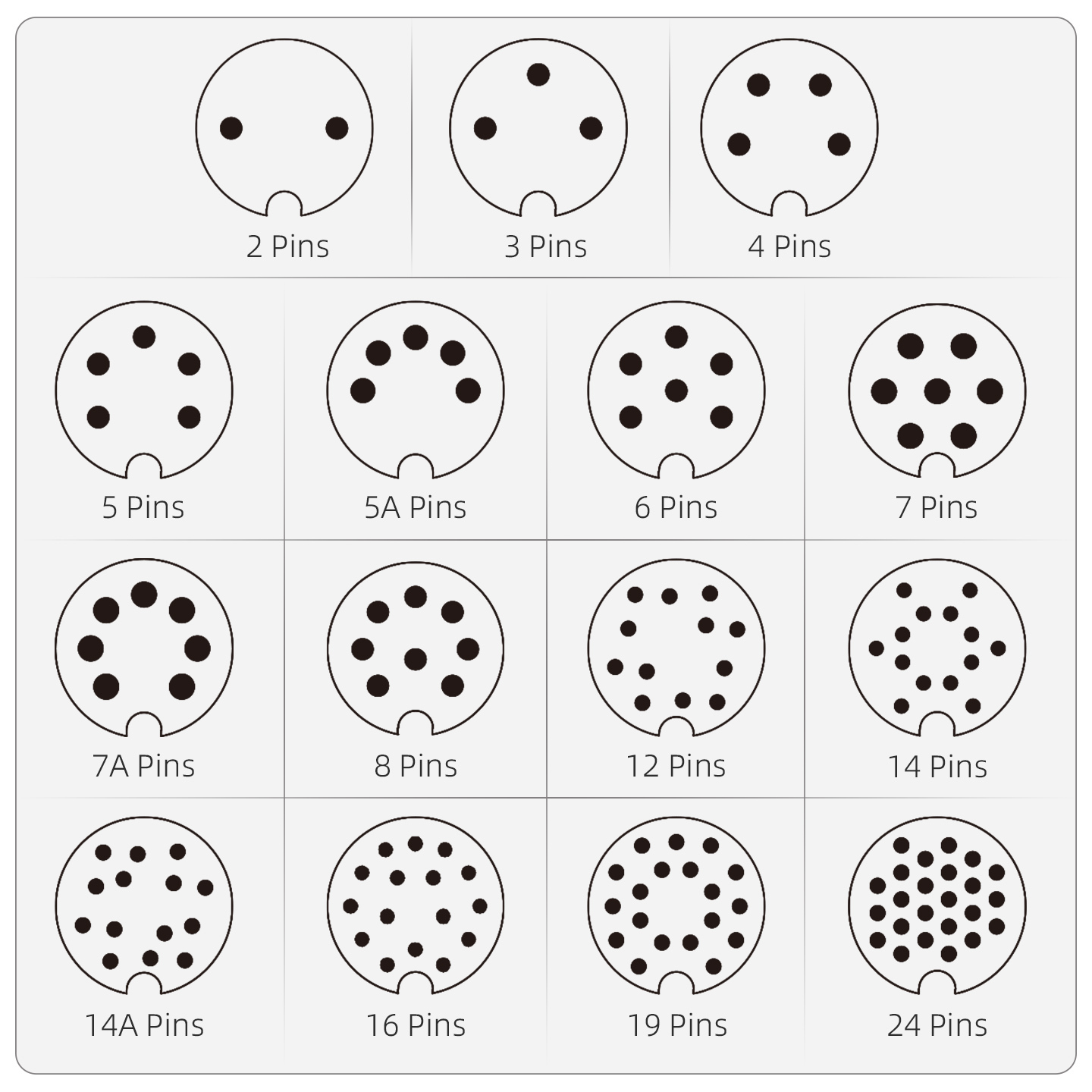

2 / 3 / 4 / 5 / 6 / 7 / 8 / 12 / 14 / 16 / 19 / 24 pins

Wire Length

30cm Standard (Customizable up to 5m)

Mounting Style

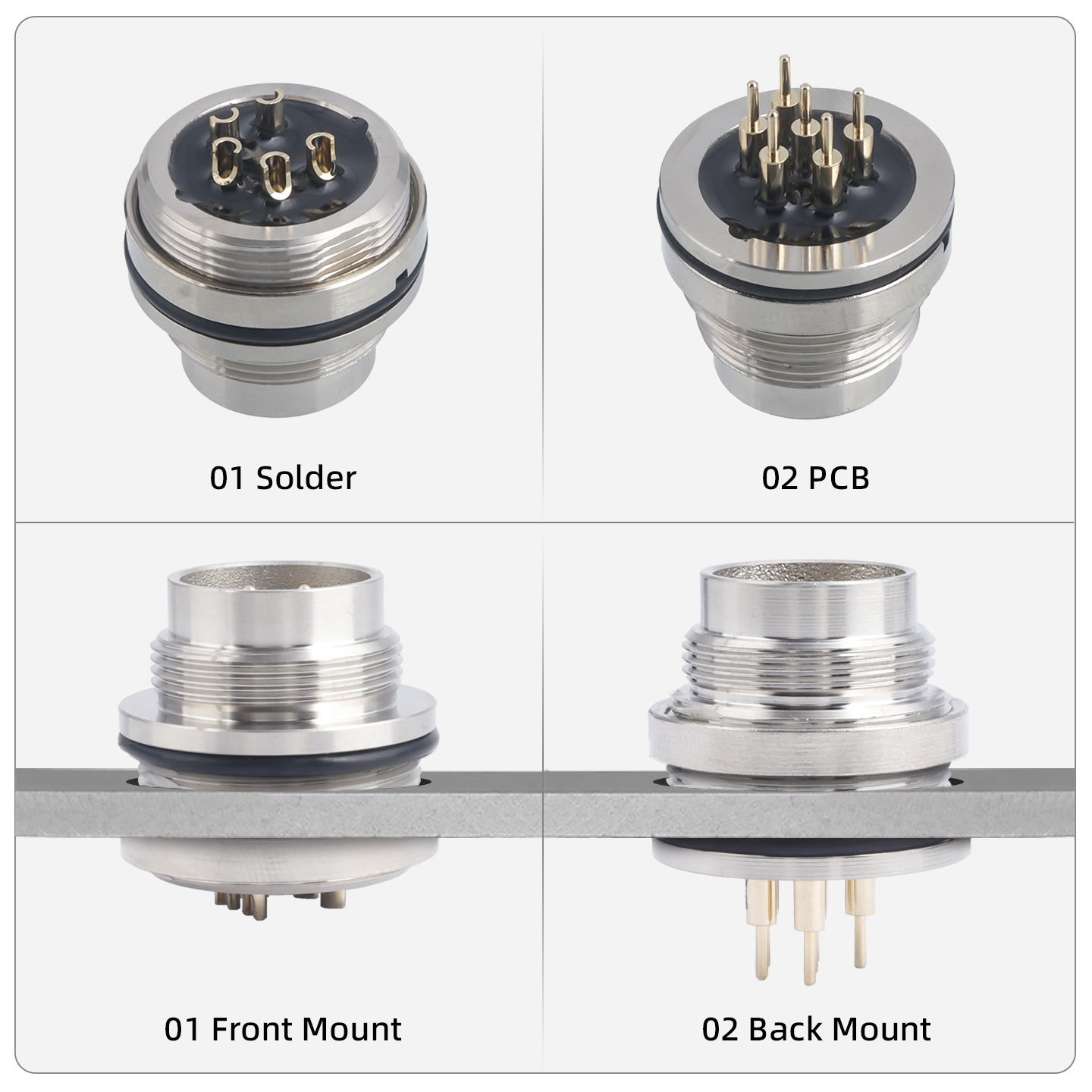

Front-mount / Back-mount panel installation

Shell Material

Brass / Zinc Alloy, Nickel-Plated

Contact Material

Brass / Phosphor Bronze, Gold-Plated

Rated Voltage

125V AC/DC

Rated Voltage

AC 250V / DC 32V

Contact Resistance

≤5mΩ

Insulation Resistance

≥100MΩ

Temperature Range

-25°C ~ +85°C

Rated Current

5A / 7A / 14A (depending on pin configuration)

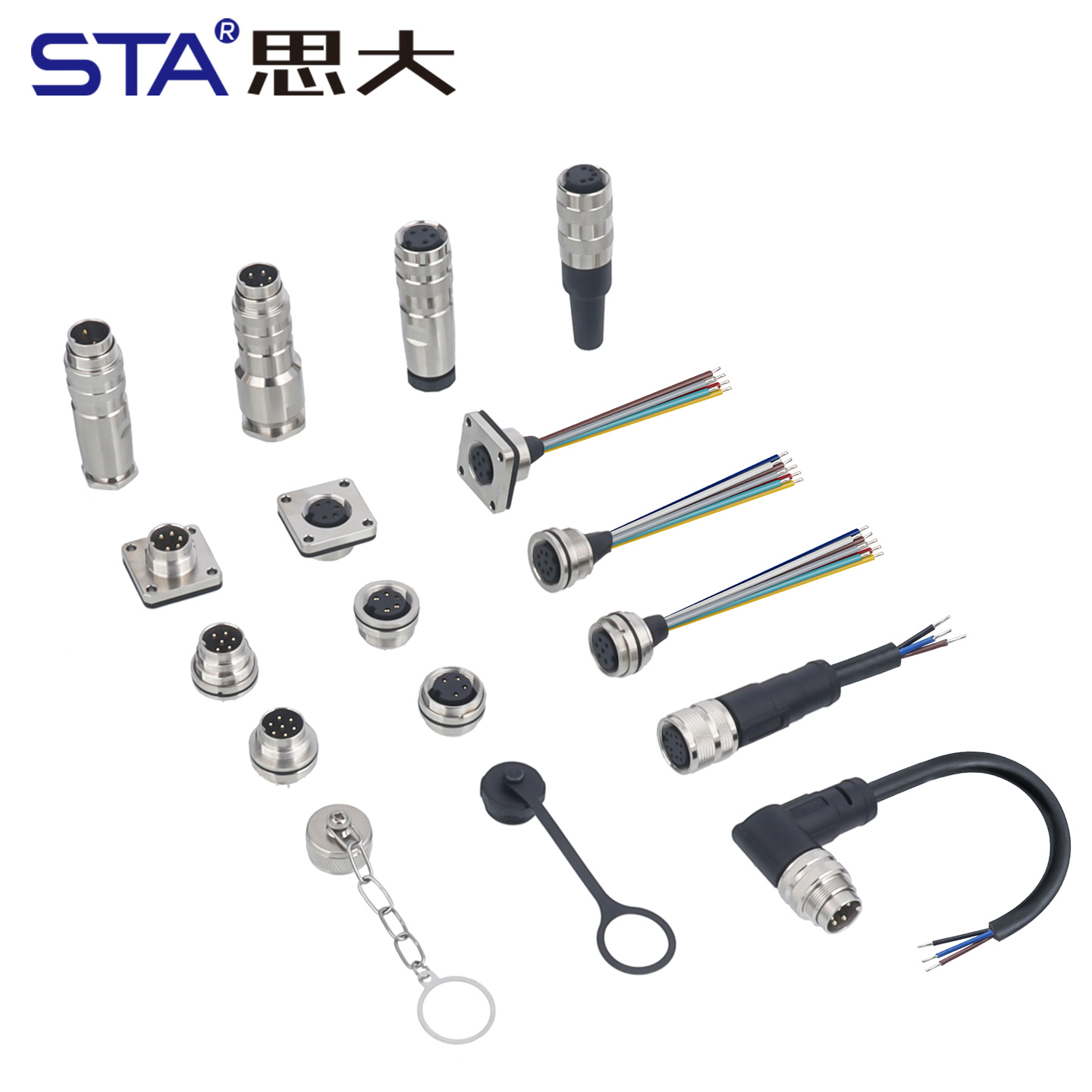

M16 Solder Socket:

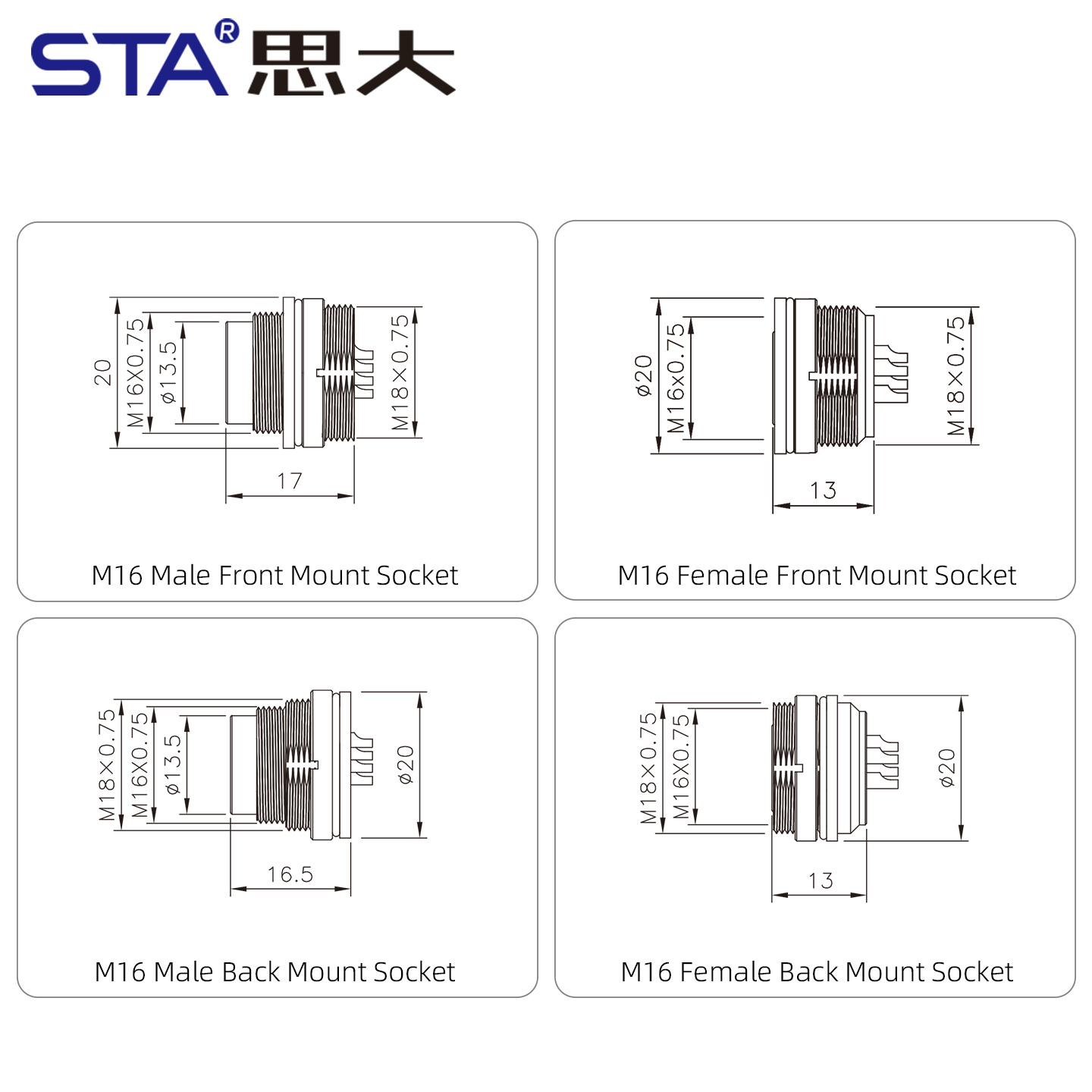

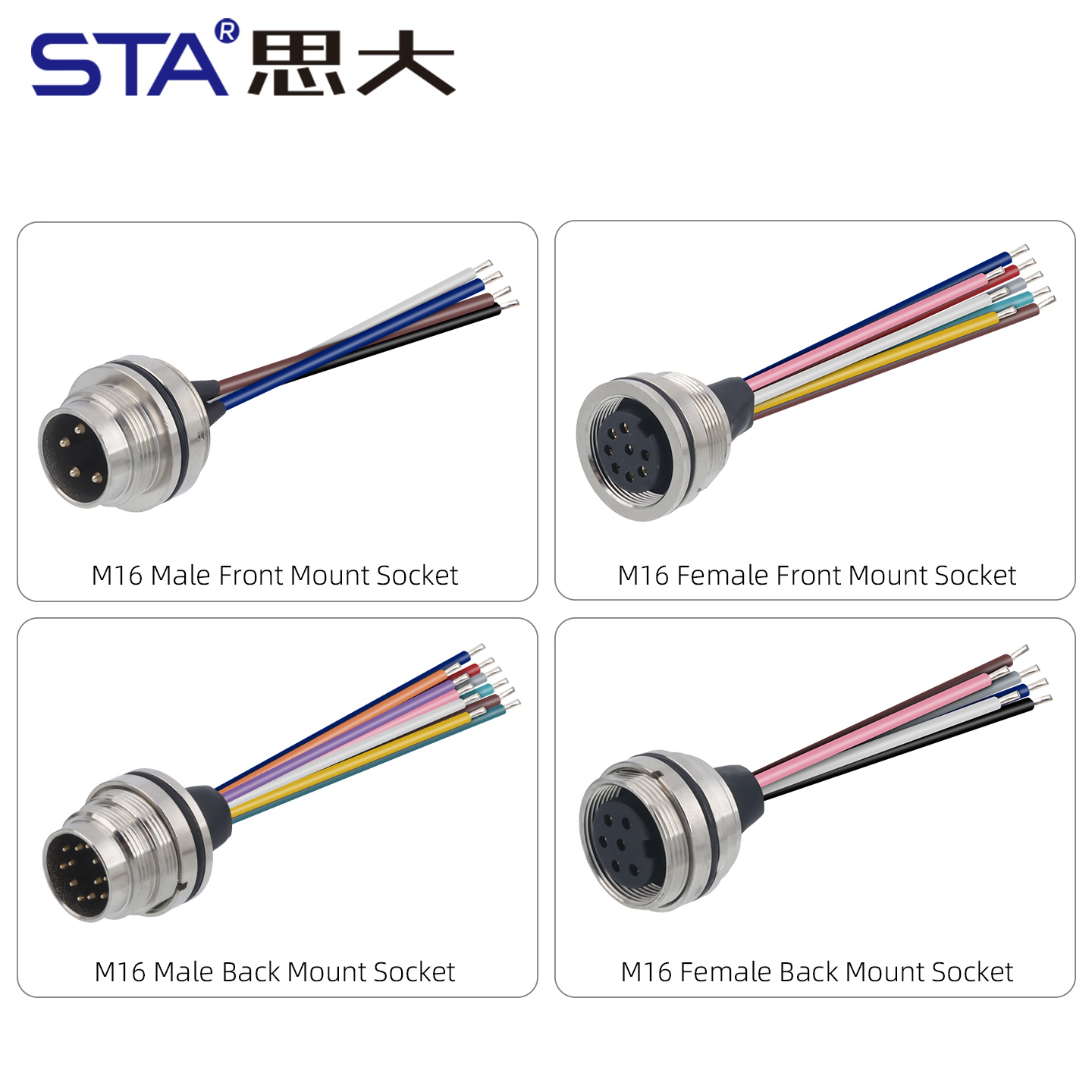

M16 Male Front Mount Socket (Solder Screw M18*0.75)

M16 Female Front Mount Socket (Solder Screw M18*0.75)

M16 Male Back Mount Socket (Solder Screw M18*0.75)

M16 Female Back Mount Socket (Solder Screw M18*0.75)

M16 Male Square Socket (Solder type Mount Hole 20*20)

M16 Female Square Socket (Solder type Mount Hole 20*20)

Pins:

2Pin

3Pin

4Pin

5Pin

6Pin

7Pin

8Pin

12Pin

14Pin

16Pin

19Pin

24Pin

Cable:

Socket

30cm Electric Cable

GET A QUOTE

Description
Video

1. Robust IP67 Panel-Mount Design for Industrial Equipment

Engineered for front and back mounting, the connector ensures long-term stability, dust protection, and moisture resistance. Ideal for control cabinets, field devices, and outdoor machinery demanding dependable waterproof connectivity.

2. Multiple Pin Options Supporting Signal and Power Transmission

With 2–24 pins and 5A/7A/14A current levels, the connector handles mixed signal and power requirements. Suitable for automation systems, instrumentation networks, and multi-channel industrial wiring.

3. High-Strength Housing with Excellent Flame Retardancy

Featuring flame-retardant materials and reinforced structure, the socket resists heat, vibration, and harsh environments, ensuring safe operation for sensors, robotics, and electrical control units.

4. Reliable Solder Termination for Stable Electrical Performance

Solder contacts provide secure termination and low contact resistance, improving reliability in OEM assembly, panel integration, and long-term field applications where stable connections are required.

5. Universal M16 Interface Ensuring Broad Equipment Compatibility

The standardized M16 interface supports seamless installation across industrial devices. It enables compatibility with M16 plugs, harness assemblies, automation modules, and outdoor power or signal systems.

Product Uses

Industrial control cabinets and automation modules
Sensors, measurement equipment, and detection systems
Robotics, motion control, and servo equipment
LED drivers, low-voltage lighting, and power interfaces
Outdoor devices requiring sealed panel-mounted connectors
